Instrument Air

  • Medical Scroll Enclosure Systems
  • Medical Scroll Open Systems
  • Medical Reciprocating Piston Systems
  • Instrument Air
  • Medical Rotary Screw Enclosure Systems
Home Medical Medical Air Instrument Air

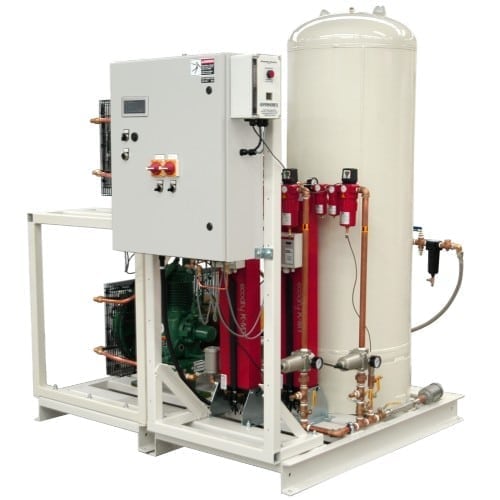

Duplex_Angled_TankDecalNoShadows

Powerex instrument air systems meet NFPA 99 requirements and are designed to provide clean, oil-less air to hospitals and medical institutions.

  • Product Specs
  • Installation Documents
  • Engineering Resources
ModelSystem HPPump HPSCFM @ 185 PSIG(2)Tank (gal)dB(A) LevelFLA @ 208VFLA @ 230VFLA @ 460VSpec SheetBrochure
Duplex Systems
IOPD07547.5 (2)7.520.41207643.039.020.5

IOPD100410 (2)1026.01207656.851.626.8

IOPD150415 (2)1534.31207984.276.439.2

Triplex Systems
IOPT07547.5 (3)7.540.81207963.557.529.75

IOPT100510 (3)1052.02007984.276.439.2

IOPT150615 (3)1568.624082125.3113.657.8

Quadplex Systems
IOPQ07557.5 (4)7.561.22008184.076.039.0

IOPQ100610 (4)1078.024081111.6101.251.6

IOPQ150615 (4)15102.924084166.4150.876.4

ModelManualElectrical DrawingsPneumatic Drawings
Duplex Systems
IOPD0754


IOPD1004


IOPD1504


Triplex Systems
IOPT0754


IOPT1005


IOPT1506


Quadplex Systems
IOPQ0755


IOPQ1006


IOPQ1506


ModelElectrical DrawingsPneumatic DrawingsRevit Drawings
Duplex Systems
IOPD0754


IOPD1004


IOPD1504


Triplex Systems
IOPT0754


IOPT1005


IOPT1506


Quadplex Systems
IOPQ0755


IOPQ1006


IOPQ1506
