Medical Reciprocating Piston Systems

  • Medical Scroll Enclosure Systems
  • Medical Scroll Open Systems
  • Medical Reciprocating Piston Systems
  • Instrument Air
  • Medical Rotary Screw Enclosure Systems
Home Medical Medical Air Medical Reciprocating Piston Systems

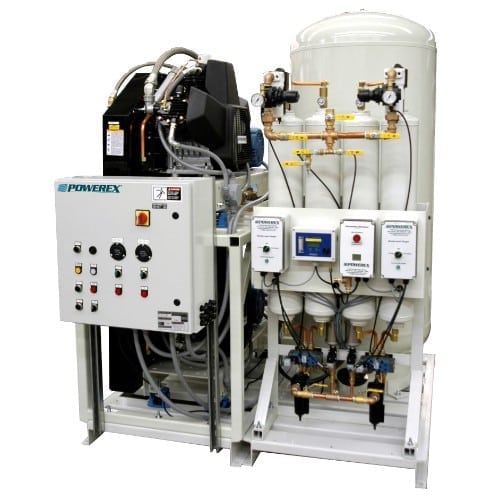

Our reciprocating piston systems feature self-lubricating composite piston technology which increases ring life and reduces temperature, providing reliability for years to come. The dual cooling pistons reduce operating temperatures, while the corrosion-resistant components and coatings extend ring and valve life.

Benefits & Features

  • Oil-less reciprocating piston pump technology
  • Available on skidmounted or tankmounted systems
  • Expandable configurations for skid mounted systems up to quadplex
  • Fully compliant with NFPA 99
  • Manufactured in ISO 9001:2015 certified facilities
  • Product Specs
  • Installation Documents
ModelSystem HPPump HPSCFM @ 50 PSIGTank (gal)dB(A) LevelFLA @ 208VFLA @ 230VFLA @ 460VSpec SheetBrochure
Duplex Tankmount Systems
MTD01031 (2)13.4807110.29.25.6

MTD02032 (2)28.3807113.912.87.4
MTD03033 (2)311.3807119.117.49.7
MTD03043 (2)311.31207119.117.49.7
MTD05045 (2)518.61207530.027.414.7
MTD05055 (2)518.62007530.027.414.7
MTD07567.5 (2)7.529.02407643.039.020.5
MTD100610 (2)1036.22407656.851.626.8
MTD150615 (2)1550.92407984.276.439.2
Duplex Systems
MPD0308 3 (2)311.38071.019.117.49.7

MPD05084 (2)418.612075.030.027.414.7
MPD06087.5 (2)7.521.412084.041.637.819.9
MPD07587.5 (2)7.529.012076.043.039.020.5
MPD100810 (2)1036.220076.056.851.626.8
MPD150815 (2)1550.920079.084.276.439.2
Duplex Systems Expandable To Triplex
MPD0508-EX3 5 (2)518.620078.044.040.121.0

MPD0608-EX3 7.5 (2)7.521.420087.061.455.728.9
MPD0758-EX3 7.5 (2)7.529.020079.063.557.529.8
MPD1008-EX3 10 (2)1036.224079.084.276.439.2
MPD1508-EX3 15 (2)1550.924082.0125.3113.657.8
Triplex Systems
MPT05085 (3)537.220078.044.040.121.0

MPT06087.5 (3)7.542.820087.061.455.728.9
MPT07587.5 (3)7.558.020079.063.557.529.8
MPT100810 (3)1072.424079.084.276.439.2
MPT150815 (3)15101.824082.0125.3113.657.8
Triplex Expandable to Quadplex
MPT0508-EX45 (3)537.224080.058.052.827.3

MPT0608-EX47.5 (3)7.542.824089.081.273.637.9
MPT0758-EX47.5 (3)7.558.024081.084.076.039.0
MPT1008-EX410 (3)1072.424081.0111.6101.251.6
MPT1508-EX415 (3)15101.824084.0166.4150.876.4
Quadplex Systems
MPQ05085 (4)555.824080.058.052.827.3

MPQ06087.5 (4)7.564.224089.081.273.637.9
MPQ07587.5 (4)7.587.024081.082.076.039.0
MPQ100810 (4)10108.624081.0111.6101.251.6
MPQ150815 (4)15152.724084.0166.4150.876.4
ModelManualPneumatic DrawingsElectrical Drawings
Duplex Tankmount Systems
MTD0103


MTD0203


MTD0303


MTD0304


MTD0504


MTD0505


MTD0756


MTD1006


MTD1506


Duplex Systems
MPD0308


MPD0508


MPD0608


MPD0758


MPD1008


MPD1508


Duplex Systems Expandable To Triplex
MPD0508-EX3


MPD0608-EX3


MPD0758-EX3


MPD1008-EX3


MPD1508-EX3


Triplex Systems
MPT0508


MPT0608


MPT0758


MPT1008


MPT1508


Triplex Expandable to Quadplex
MPT0508-EX4


MPT0608-EX4


MPT0758-EX4


MPT1008-EX4


MPT1508-EX4


Quadplex Systems
MPQ0508


MPQ0608


MPQ0758


MPQ1008


MPQ1508
