Medical Claw Enclosed Systems

  • Medical Claw Enclosed Systems
  • Medical Claw Open Systems
  • Medical Lubricated Vane Enclosed Systems
  • Medical Lubricated Vane Open Systems
  • Medical Oil-less Vane Open Systems
Home Medical Medical Vacuum Medical Claw Enclosed Systems

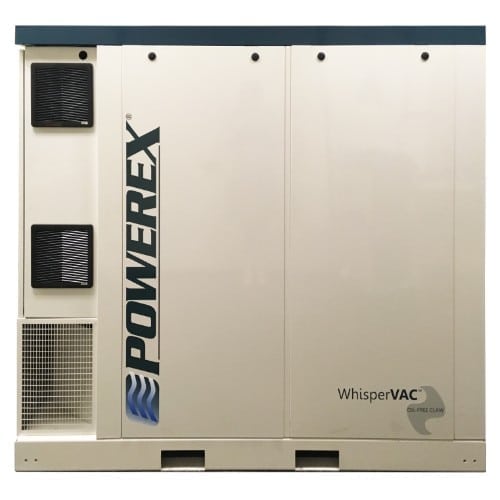

Our industry-first enclosed claw vacuum system decreases noise levels, allowing the vacuum system to be installed right at the point of use. Perfect when paired with our enclosed air systems, offering the lowest noise levels on the market. The claw pump design is extremely efficient and has very low maintenance cost; because there is no actual contact between the rotors and the cylinder wall, parts that need replacing or required maintenance is minimized.

The patented innovative sound enclosure reduces the vacuum pump sound intensity by 4-5 times, which allows all Powerex WhisperVAC™ systems to safely fall in within the NIOSH 8 hour exposure limit.  The reduced sound levels also allows for greater flexibility in system placement since there is less nuisance risk for patients and hospital staff.

  • Product Specs
  • Installation Documents
  • Engineering Resources
  • Features
ModelHPSCFM @
19" Hg
Tank (gal)BTU/HrdB(A) LevelFLA @
208V
FLA @
230V
FLA @
460V
Spec SheetBrochure
Duplex Systems
MCED05075 (2)33.0-8,6706433.431.816.4

MCED07077.5 (2)52.8-12,1386445.443.822.4
MCED07577.5 (2)67.8-13,0056445.443.822.4
MCED100710 (2)99.1-25,4446854.450.826.4
MCED150715 (2)120.0-38,1666879.474.838.4
MCED05045 (2)33.012010,8006433.431.816.4
MCED07047.5 (2)52.812015,2006445.443.822.4
MCED07547.5 (2)67.812016,3006445.443.822.4
MCED100510 (2)99.120025,4446854.450.826.4
MCED150515 (2)120.020038,1666879.474.838.4
Triplex Systems
MCET05055 (3)135.620021,6006633.4 (P)
16.7 (S)
31.8 (P)
15.9 (S)
16.4 (P)
8.2 (S)


MCET07057.5 (3)66.020030,4006645.4 (P)
22.7 (S)
43.8 (P)
21.9 (S)
22.4 (P)
11.2 (S)

MCET07557.5 (3)105.620032,6006645.4 (P)
22.7 (S)
43.8 (P)
21.9 (S)
22.4 (P)
11.2 (S)

MCET100510 (3)198.220050,8887282.677.240.6
MCET150515 (3)24020076,33372120.1113.258.6
Triplex Systems Expandable to Quadplex
MCET0505-EX45 (3)66.020021,6006633.4 (P)
16.7 (S)
31.8 (P)
15.9 (S)
16.4 (P)
8.2 (S)


MCET0705-EX47.5 (3)105.620030,4006645.4 (P)
22.7 (S)
43.8 (P)
21.9 (S)
22.4 (P)
11.2 (S)

MCET0755-EX47.5 (3)135.620032,6006645.4 (P)
22.7 (S)
43.8 (P)
21.9 (S)
22.4 (P)
11.2 (S)

MCET1005-EX410 (3)198.220050,88872108.8101.652.8
MCET1505-EX415 (3)24020076,33372158.8149.676.8
Quadplex Systems
MCEQ05055 (4)99.020032,4006833.431.816.4

MCEQ07057.5 (4)158.420045,6006845.443.822.4
MCEQ07557.5 (4)203.420048,9006845.443.822.4
MCEQ100510 (4)297.320076,33374-101.652.8
MCEQ150515 (4)360200114,49974-149.676.8
Pentaplex Systems
MCEP07557.5 (5)271.220065,2006945.4 (P)
45.4 (S1)
22.7 (S2)
43.8 (P)
43.8 (S1)
21.9 (S2)
22.4 (P)
22.4 (S1)
11.2 (S2)


MCEP150515 (5)480200152,66674-18897
Hexaplex Systems
MCEH07557.5 (6)339.020081,5007045.443.822.4

MCEH150515 (6)600200190,83376-224.4115.2
ModelManualElectrical DrawingsPneumatic Drawings
Duplex Systems
MCED0507


MCED0707


MCED0757


MCED1007


MCED1507


MCED0504


MCED0704


MCED0754


MCED1005


MCED1505


Triplex Systems
MCET0505
Primary Panel
Subordinate Panel

MCET0705
Primary Panel
Subordinate Panel

MCET0755
Primary Panel
Subordinate Panel

MCET1005
Primary Panel
Subordinate Panel

MCET1505
Primary Panel
Subordinate Panel

Triplex Systems Expandable to Quadplex
MCET0505-EX4
Primary Panel
Subordinate Panel

MCET0705-EX4
Primary Panel
Subordinate Panel

MCET0755-EX4
Primary Panel
Subordinate Panel

MCET1005-EX4
Primary Panel
Subordinate Panel

MCET1505EX-4
Primary Panel
Subordinate Panel

Quadplex Systems
MCEQ0505
Primary Panel
Subordinate Panel

MCEQ0705
Primary Panel
Subordinate Panel

MCEQ0755
Primary Panel
Subordinate Panel

MCEQ1005
Primary Panel
Subordinate Panel

MCEQ1505
Primary Panel
Subordinate Panel

Pentaplex Systems
MCEP0755
Primary Panel
Subordinate Panel 1
Subordinate Panel 2

MCEP1505
Primary Panel
Subordinate Panel 1
Subordinate Panel 2

Hexaplex Systems
MCEH0755
Primary Panel
Subordinate Panel (x2)

MCEH1505
Primary Panel
Subordinate Panel (x2)

ModelRevit Drawings
Duplex Systems
MCED0707Coming Soon
MCED0757Coming Soon
MCED1007
MCED1507
MCED0504Coming Soon
MCED0704Coming Soon
MCED0754Coming Soon
MCED1005
MCED1505
Triplex Systems
MCET0705Coming Soon
MCET0755Coming Soon
MCET1005
MCET1505
Triplex Systems Expandable to Quadplex
MCET0705-EX4Coming Soon
MCET0755-EX4Coming Soon
MCET1005-EX4
MCET1505-EX4
Quadplex Systems
MCEQ0705Coming Soon
MCEQ0755Coming Soon
MCEQ1005
MCEQ1505
Pentaplex Systems
MCEP1505
Hexaplex Systems
MCEH1505

WHISPERVAC™ SOUND REDUCING ENCLOSURE CABINET

Powerex’s trademarked sound enclosure systems offer the lowest noise levels in the industry. Each system is packaged in a rigid steel frame with powder coated panels and lined with sound-deadening insulation. The patented innovative sound enclosure reduces the vacuum pump sound intensity by 4-5 times, which allows all Powerex WhisperVAC™ systems to safely fall in within the NIOSH 8 hour exposure limit.  The reduced sound levels also allows for greater flexibility in system placement since there is less nuisance risk for patients and hospital staff.

  • Claw vacuum pumps are enclosed within sound-reducing panels – an industry first!
  • Sound intensity is reduced by an average of 14 dBA over comparable open frame systems
  • All systems are well within NIOSH limits of 8 hour exposure
  • Helps protect the hearing of healthcare facility employees
  • Improves working environment near the medical vacuum system
  • Helps avoid disturbing patients and/or hospital employees
  • Ultimate sound reduction achieved when packaged with Powerex WhisperAir™ enclosed scroll medical air systems – the quietest source equipment in the industry!
BENEFITS
  • Lowest noise level on the market
  • Most energy efficient technology
  • Oil-free compression chamber
  • Extremely low maintenance
  • No water or sewage costs
  • Suitable for WAGD applications
  • Air cooled
  • Fits through a 36” door
  • Standard outlet muffler provided
  • Maintenance friendly
  • Easy to remove latched panels
  • Isolator bolt elevator rail for lower pump removal

CONTROL PANEL

  • PLC Controller and 6” color HMI touchscreen displaying the operating status of the system
  • UL508A listed and labeled, NEMA 4/12 encolsure
  • Building automation gateway with BacNet® protocol
  • Email notifications for alarms and service alerts
  • Visual and audible alarms for:
    • System overload trip
    • High temperature conditions
    • Service intervals
  • Panel door includes:
    • Audible and visual alarms with an acknowledge button – HOA switch for each pump

OPTIONS & ACCESSORIES

  • Premium Warranty
  • Oxygen Assured Pumps
  • Internal Tank Lining
