Home Medical Medical Gas Pipeline NEW FirstCall™ Alarm Panel
Area Alarm Panel with 10” screen and the gases: Oxygen, Medical Air, Nitrous Oxide, Medical Vacuum, Nitrogen, Carbon Dioxide, WAGD, Instrument AirCombination Alarm Panel with 10” screen and the gases: Oxygen, Medical Air, Nitrous Oxide, Medical VacuumCombination Alarm Panel with 10” screen and the gases: Oxygen, Medical Air, Carbon Dioxide, Nitrous Oxide, Nitrogen, Medical VacuumMaster Alarm Panel with 10” screen and 23 input signalsMaster Alarm Panel with 10” screen and 55 input signals

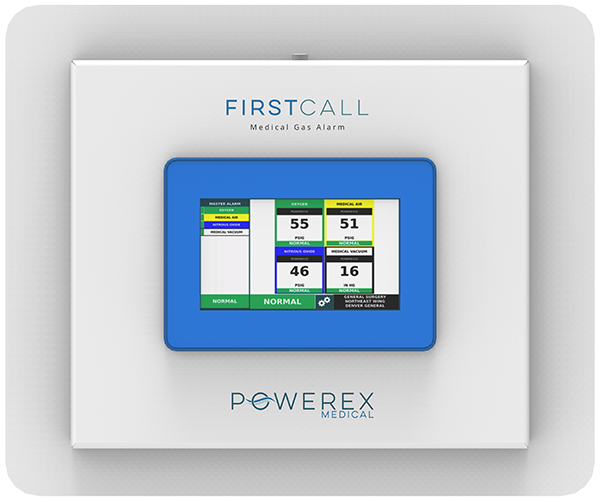

The Powerex FirstCall™ medical gas alarm systems monitor the status of medical gases in Category 1 healthcare facilities. The alarm systems are ETL listed to UL 1069 and comply with the latest edition of NFPA 99. All alarm systems provide audible and visible indications of NFPA 99 medical gas alarm conditions.

  • 10” high-resolution touchscreen HMI with 7” VE option available
  • Ethernet connectivity using BACnet over IP protocol to building management system – standard
  • Customizable emergency instructions in the event of an alarm
  • Area alarm up to 8 gases
  • Master alarm 23, 39, and 55 input signals
  • Combination alarm up to 6 gases, 23, 39, or 55 input signals
  • Designed and manufactured in the USA
  • 5 year warranty on parts, 2 year warranty on labor
  • Powerex UL ETL Listing (UL 1069)
  • Powerex CSA ETL Listing (CAN/CSA C22.2 No. 205)
  • FirstCall™ Alarm Panels
  • Features
FirstCall Medical Gas Alarm PanelsSpec SheetManualBrochure
Area Alarm Panel



Master Alarm Panel



Combination Alarm Panel



  • Built by Powerex in Harrison, OH
  • 5 year warranty on parts, 2 year warranty on labor
  • 10” high-resolution touchscreen HMI with 7” VE option available
  • Area alarm up to 8 gases
    • 4-20mA signal transducers, DISS demand-check fittings, and gas risers included with Area Alarm
  • Transducers are able to be remotely installed up to 5,000 ft away
  • Master alarm 23, 39, and 55 input signals
  • Combination alarm up to 6 gases, 23, 39, or 55 input signals
  • Ethernet connectivity using BACnet over IP protocol to building management system – standard
  • Alarm signal status can also be viewed on a standard computer connected to the facility’s local network via Ethernet
  • Customizable emergency instructions in the event of an alarm
  • Easy to use interface for setup and changing settings
  • Pre-programmed NFPA 99 gas labels and colors
  • Event history log accessible at the screen
  • Alarm test feature – able to use quickly without logging in
  • Area alarm automatically sets NFPA 99 +/-20% limits based on current pressure
  • Master alarm pre-programmed NFPA 99 source alarm signals – also customizable
  • Master alarm signals organized under main source badge – click through for individual alarm information
  • Push-in terminal blocks to easily connect transducer and source equipment alarm signals
  • Factory set for normally closed signals, able to change to normally open
  • Transducers are gas-specific, and cross-connecting a transducer with an assigned gas input will generate an alarm per 2018 NFPA 99
  • Hinged frame for easy assembly and maintenance
  • Option for digital outputs – contact factory
