Home Medical Medical Gas Pipeline FirstCall™ Alarm Zone Valve Box

The Powerex FirstCall™ Alarm Zone Valve Box integrates a Zone Valve Box and Area Alarm Panel into one compact, code-compliant unit. Designed for Category 1 healthcare facilities, it saves space & simplifies installation, enhancing the monitoring of critical medical gases. ETL listed to UL 1069 and fully compliant with NFPA 99, it delivers a streamlined solution for efficient medical gas management.

Features
  •  7” High-Resolution Touchscreen HMI
  • Arrives with Pre-Programmed Settings for Medical Gas Inputs
  • Customizable On-Screen Emergency Instructions to guide staff during alarm events
  • Real-time Pressure Display for up to 7 Gases
  • BACnet over IP Ethernet connectivity for seamless integration with building management systems (optional)
  • Proudly Designed and Manufactured in the USA
  • Industry’s Best Warranty! 5-Year Warranty on Parts | 2-Year Warranty on Labor
  • FirstCall Alarm Zone Valve Boxes
  • Alarm ZVB Revit
  • Features
Alarm Zone Valve BoxSpec Sheet - EnglishSpec Sheet - SpanishManual

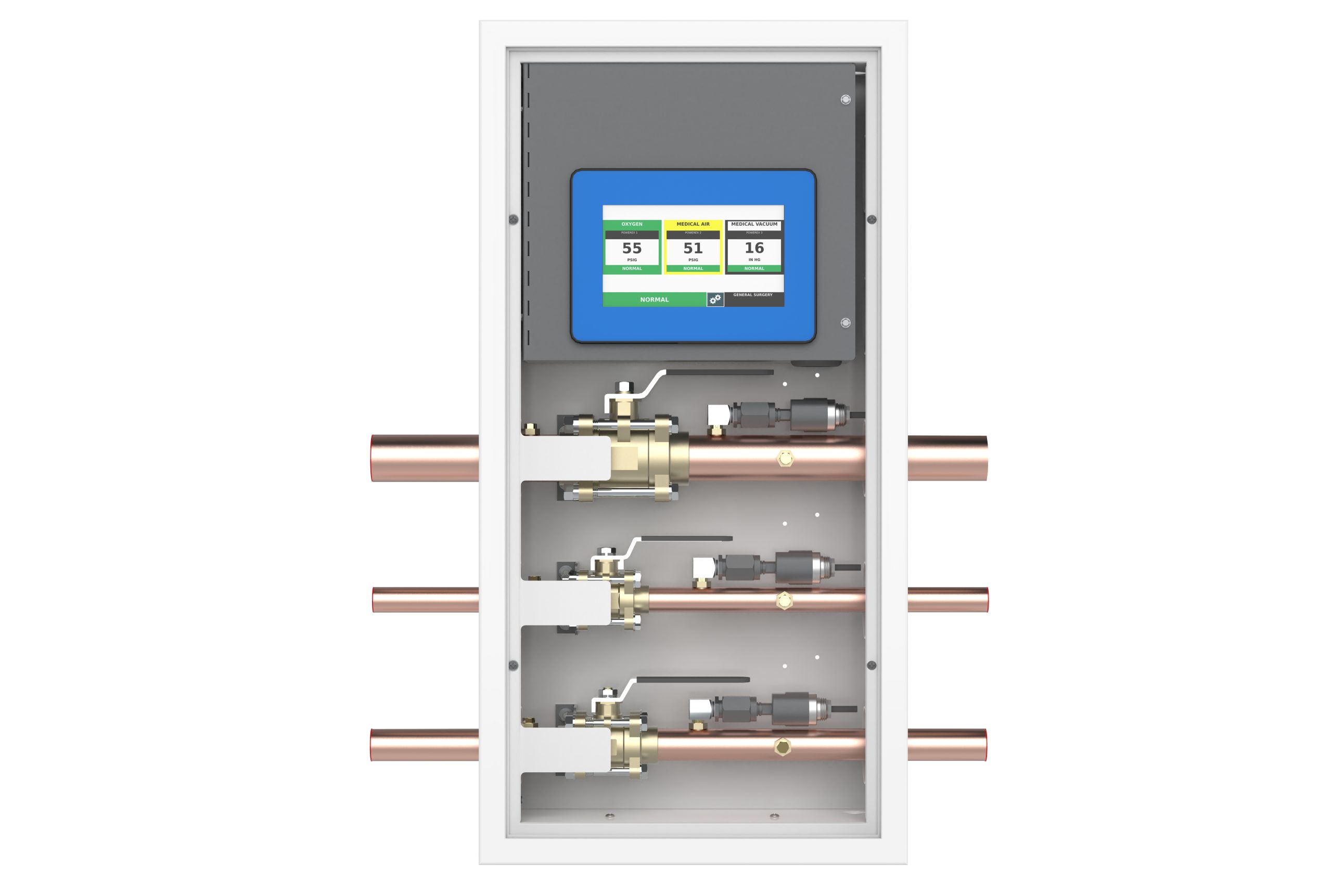

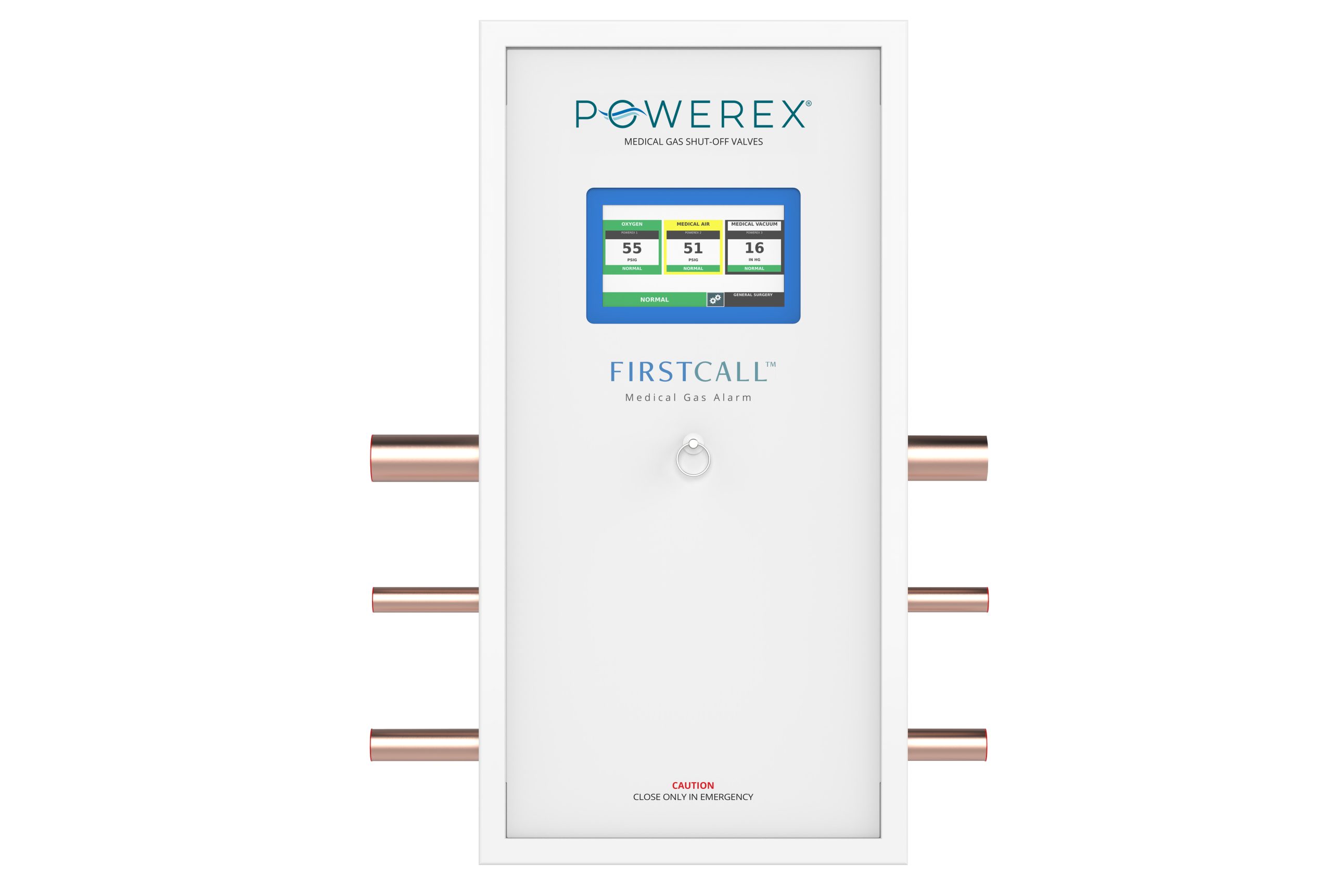

Standard Box

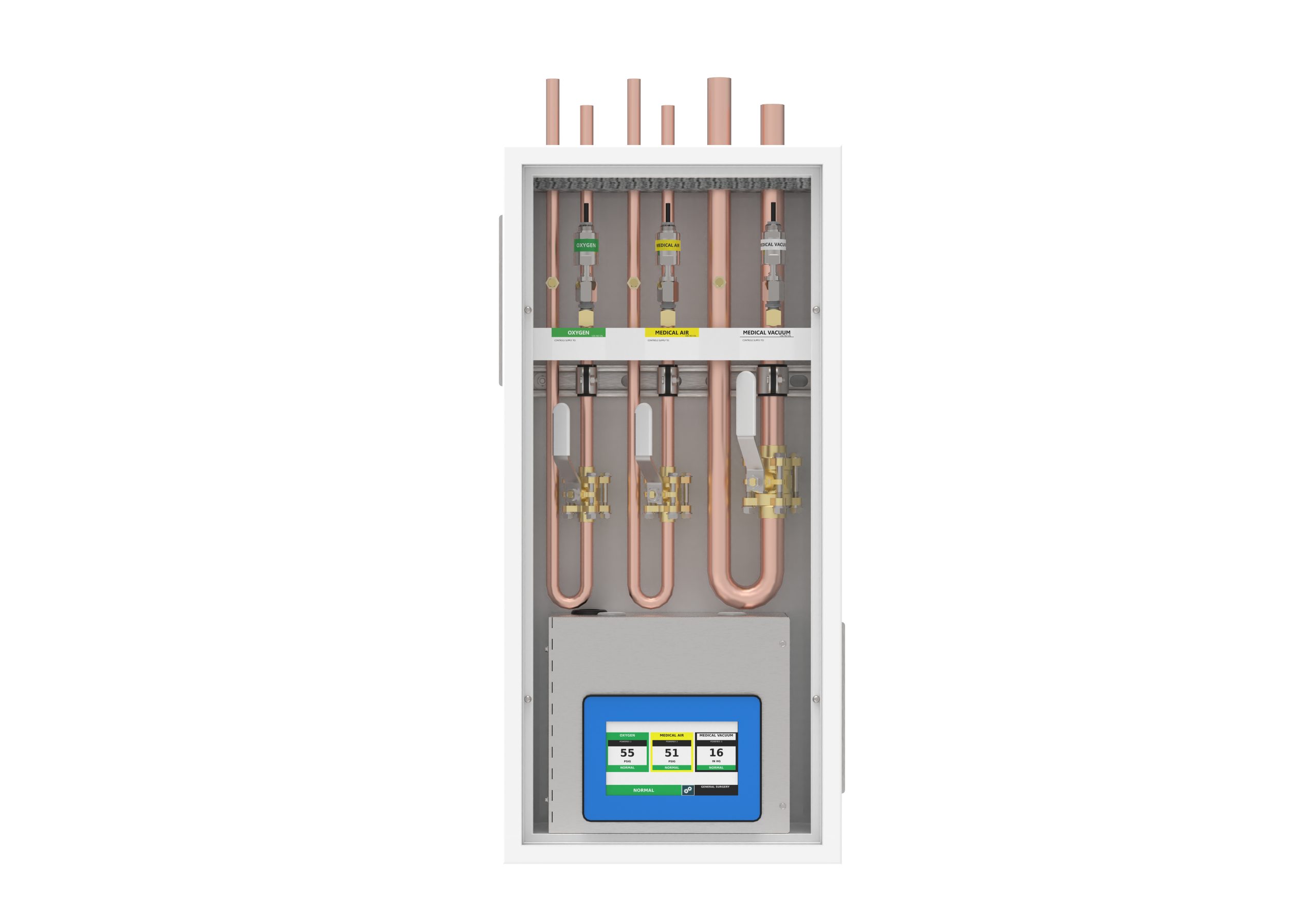

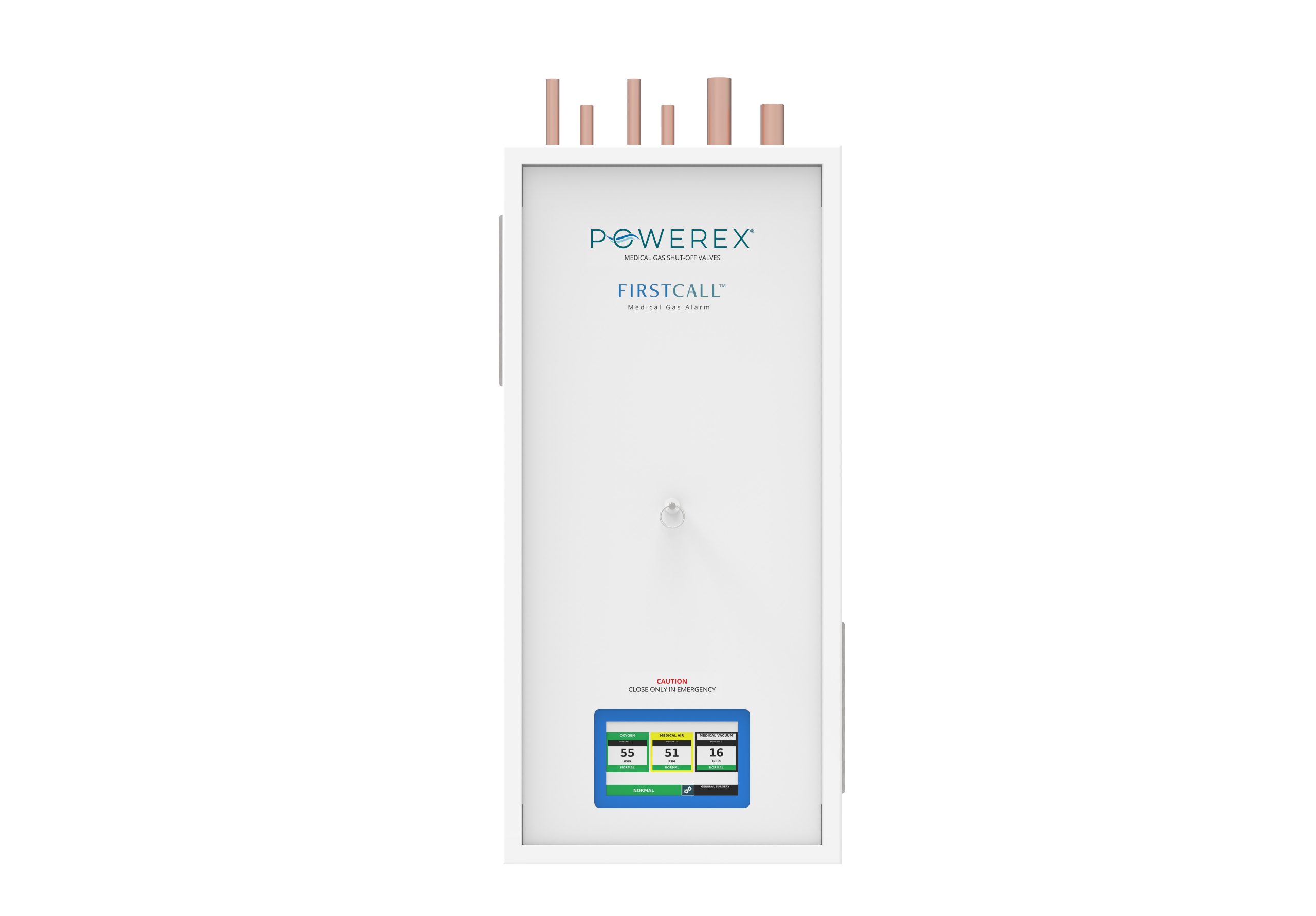

Vertical Zone Valve Box

Alarm Zone Valve BoxesRevit
Single Valve, Standard Box
Two Valves, Standard Box
Three Valves, Standard Box
Four Valves, Standard Box
Five Valves, Standard Box
Six Valves, Standard Box
Seven Valves, Standard Box
Single Valve, Vertical Box
Two Valves, Vertical Box
Three Valves, Vertical Box
Four Valves, Vertical Box
  • Alarm signal status can also be viewed on a standard computer connected to the facility’s local network via Ethernet
  • Easy to use interface for setup and changing settings
  • Pre-programmed NFPA 99 gas labels and colors
  • Event history log accessible at the screen
  • Alarm test feature – able to use quickly without logging in
  • Area alarm automatically sets NFPA 99 +/-20% limits based on current pressure
  • Push-in terminal blocks to easily connect transducers
  • Factory set for normally closed signals, able to change to normally open
  • Transducers are gas-specific, and cross-connecting a transducer with an assigned gas input will generate an alarm per 2018 NFPA 99
