Enclosed Scroll Systems

  • Enclosed Scroll Systems
  • Enclosed Scroll Tankmount Systems
  • Scroll Tankmount Systems
  • Scroll Basemount Systems
  • Oil-less Reciprocating Piston Tankmount
  • Oil-less Reciprocating Piston Basemount
  • Climate Control Systems
Home Industrial Industrial Air Enclosed Scroll Systems

Our innovative scroll technology is completely oil-less, extremely quiet, energy efficient, and easy to maintain. The sound enclosure cabinet decreases noise levels even further, allowing the compressor system to be installed right at the point of use. The small footprint also helps maximize available floor space.

Benefits & Features

  • Oil-less scroll pump technology
  • Low maintenance
  • Low noise and vibration levels
  • Manufactured in ISO 9001:2015 certified facilities
  • Product Specs
  • Installation Documents
  • Engineering Resources
  • Features
ModelSystem HPPump HPSCFM @ 100 PSIGTank (gal)dB(A) LevelFLA @ 208VFLA @ 230VFLA @ 460VSpec SheetBrochure
Simplex
SES0308338.8134998.14.2

SES1308338.81349-13-
SES05085515.2135114.513.16.6
SES15185515.21351-23.4-
Duplex
SED1007105 (2)30.4-5330.82815

SED15B7157.5 (2)46.2-6340.236.619.3
SED20B72010 (2)62.4-6452.84825
Triplex
SET1507155 (3)45.6-5645.24121.5

SET225722.57.5 (3)69.3-6559.353.927.9
SET30B73010 (3)93.6-6678.27136.5
Quadplex
SEQ2007205 (4)60.8-5859.65428

SEQ40B74010 (4)124.8-66103.69448
Pentaplex
SEP50B75010 (5)156.0-6712911759.5

Hexaplex
SEH3007305 (6)91.2-5988.48040.9

SEH45B7457.5 (6)138.6-66116.6105.853.8
SEH60B76010 (6)187.2-69154.414071
Octoplex
SEO4007405 (8)121.6-60117.210653.9

ModelManualElectrical DrawingsPneumatic Drawings
Simplex
SES0308
Coming SoonComing Soon
SES1308
Coming SoonComing Soon
SES0508
Coming SoonComing Soon
SES1518
Coming SoonComing Soon
Duplex
SED1007
Coming SoonComing Soon
SED15B7
Coming SoonComing Soon
SED20B7
Coming SoonComing Soon
Triplex
SET1507
Coming SoonComing Soon
SET2257
Coming SoonComing Soon
SET30B7
Coming SoonComing Soon
Quadplex
SEQ2007
Coming SoonComing Soon
SEQ40B7
Coming SoonComing Soon
Pentaplex
SEP50B7
Coming SoonComing Soon
Hexaplex
SEH3007
Coming SoonComing Soon
SEH45B7
Coming SoonComing Soon
SEH60B7
Coming SoonComing Soon
Octoplex
SEO4007
Coming SoonComing Soon
ModelCAD - 2DCAD - 3DRevit Drawings
Simplex
SES0308Coming SoonComing SoonComing Soon
SES1308Coming SoonComing SoonComing Soon
SES0508Coming SoonComing SoonComing Soon
SES1518Coming SoonComing SoonComing Soon
Duplex
SED1007Coming SoonComing SoonComing Soon
SED15B7Coming SoonComing SoonComing Soon
SED20B7Coming SoonComing SoonComing Soon
Triplex
SET1507Coming SoonComing SoonComing Soon
SET2257Coming SoonComing SoonComing Soon
SET30B7Coming SoonComing SoonComing Soon
Quadplex
SEQ2007Coming SoonComing SoonComing Soon
SEQ40B7Coming SoonComing SoonComing Soon
Pentaplex
SEP50B7Coming SoonComing SoonComing Soon
Hexaplex
SEH3007Coming SoonComing SoonComing Soon
SEH45B7Coming SoonComing SoonComing Soon
SEH60B7Coming SoonComing SoonComing Soon
Octoplex
SEO4007Coming SoonComing SoonComing Soon

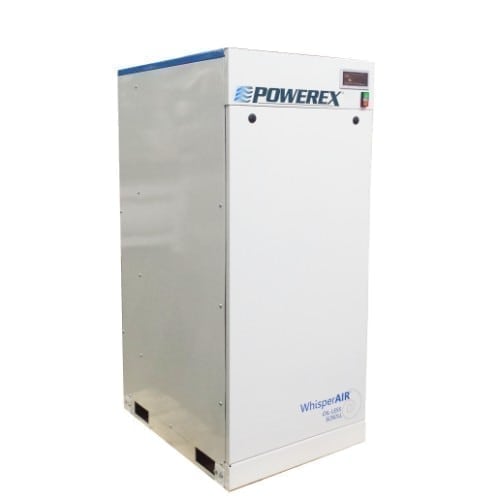

WhisperAIR™ Sound Enclosure Cabinet

Powerex’s trademarked oil-free enclosure systems offer the lowest noise levels in the industry. Each system is packaged in a rigid steel frame with powder coated panels and lined with sound-deadening insulation. The low noise levels are unmatched in the industry and allow installation at the point of use, while the small footprint simultaneously maximizes floor space.

Oil-less Scroll Pump Technology

Our innovative scroll technology is completely oil-less, extremely quiet, and energy efficient. The scroll pump has few moving parts, making it reliable and easier to maintain. The self lubricating tip seals and absence of a gearbox means the pump is truly 100% oil free. As the leaders in scroll pump technology, our latest design incorporates several innovative features:

  • Main bearings are housed in durable cast iron instead of aluminum which prevents fretting and premature failure of the bearing race. This pump can be operated at 100% duty with confidence.
  • The patented bearing re-grease feature has been improved to allow maintenance from the front side of the pump, cutting service time in half.
  • The patented tip seal design yields the highest flow rates and longevity of any other dry scroll compressor.
  • The improved efficiency and cooling results in lower operating temperatures.
  • Extremely low vibration.
  • Industry first 10hp scroll pump improves system efficiency by producing more output using fewer pumps.

Energy Efficiency

With the Powerex Variable Pump Drive system, each compressor pump is automatically staged on/off individually based on actual system demand, maximizing energy efficiency at all usage levels. Lead compressor status will alternate every time a pump is called for – or every 10 minutes, whichever comes first – which maintains equal run hours and extends maintenance intervals.
Redundancy is built into our system with our multiple pump design, eliminating the need to purchase an additional compressor.

System Features

3-5 HP SIMPLEX MODELS
  • 3-5 HP systems are UL/CSA certified
  • Integral 13 gallon tank ASME/CRN
  • Inlet filtration with replaceable element
  • Front mounted control panel includes:
    • On/Off switch
    • Power on light
    • High temperature shutdown with indication light
    • Run time hourmeter
    • Pressure gauge
    • Automatic start/stop operation
    • Control voltage starter with motor overload protection
  • Internal vibration isolators
  • Air-cooled aftercooler
  • ODP Motor
10-60 HP MULTIPLEX MODELS
  • 10-20 HP systems are UL/CSA certified
  • Inlet filtration with replaceable element
  • Front mounted control panel includes:
    • On/Off switch
    • Power on light
    • High temperature shutdown with indication on the display
    • Run time hourmeter for each pump
    • Maintenance counter with alarm warning display
    • System pressure display
    • Full voltage starter with overload protection
    • General compressor fault with remote contacts
  • Internal vibration isolators
  • Air-cooled aftercooler for each compressor
  • TEFC Motor
  • 40-60hp systems have two isolatable compressor banks to allow for ease of maintenance and service
    • Mechanically isolated with the use of ball valves
    • Electrically isolated with motor protector disconnect and circuit breakers
    • OSHA-approved service on half capacity while other half is running
ACCESSORIES & OPTIONS
  • Air receivers 30-600 gal
  • Desiccant air treatment systems
  • Refrigerated air treatment systems
  • Remote inlet filters
  • Master lead/lag controllers for multiple cabinets
  • NFPA 99 compliant systems
  • Laboratory system packaging
  • CO monitor
  • Dewpoint monitor
  • 50Hz motors
