VacuGuard+

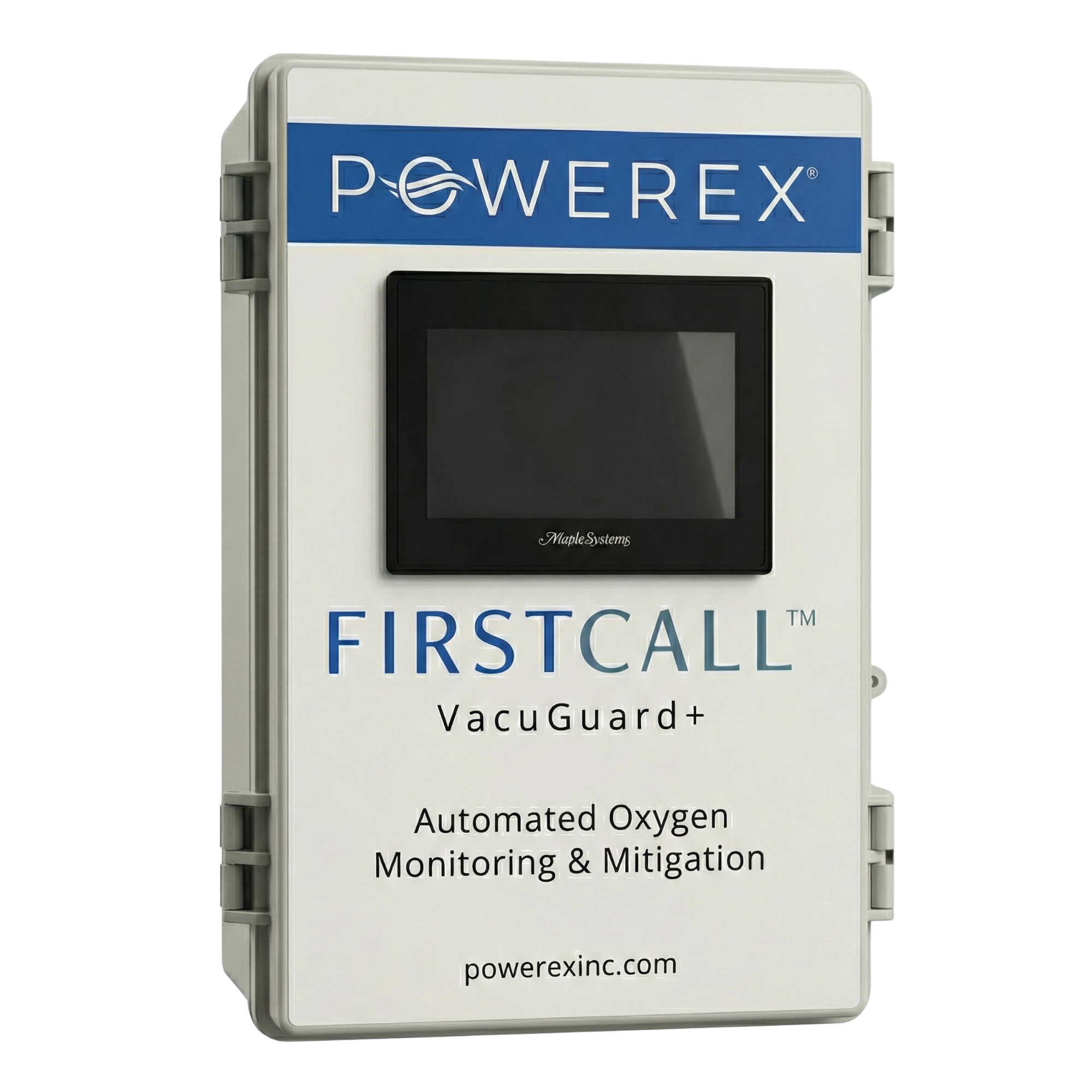

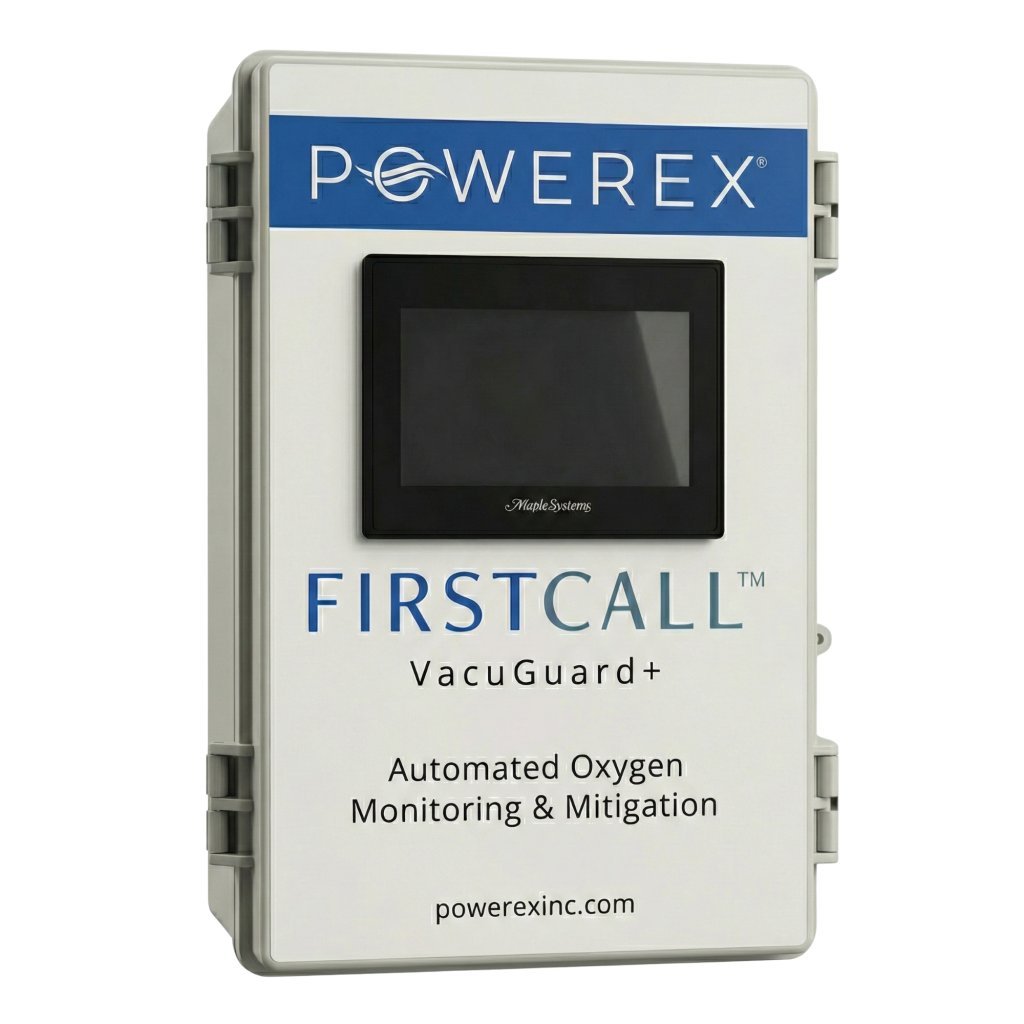

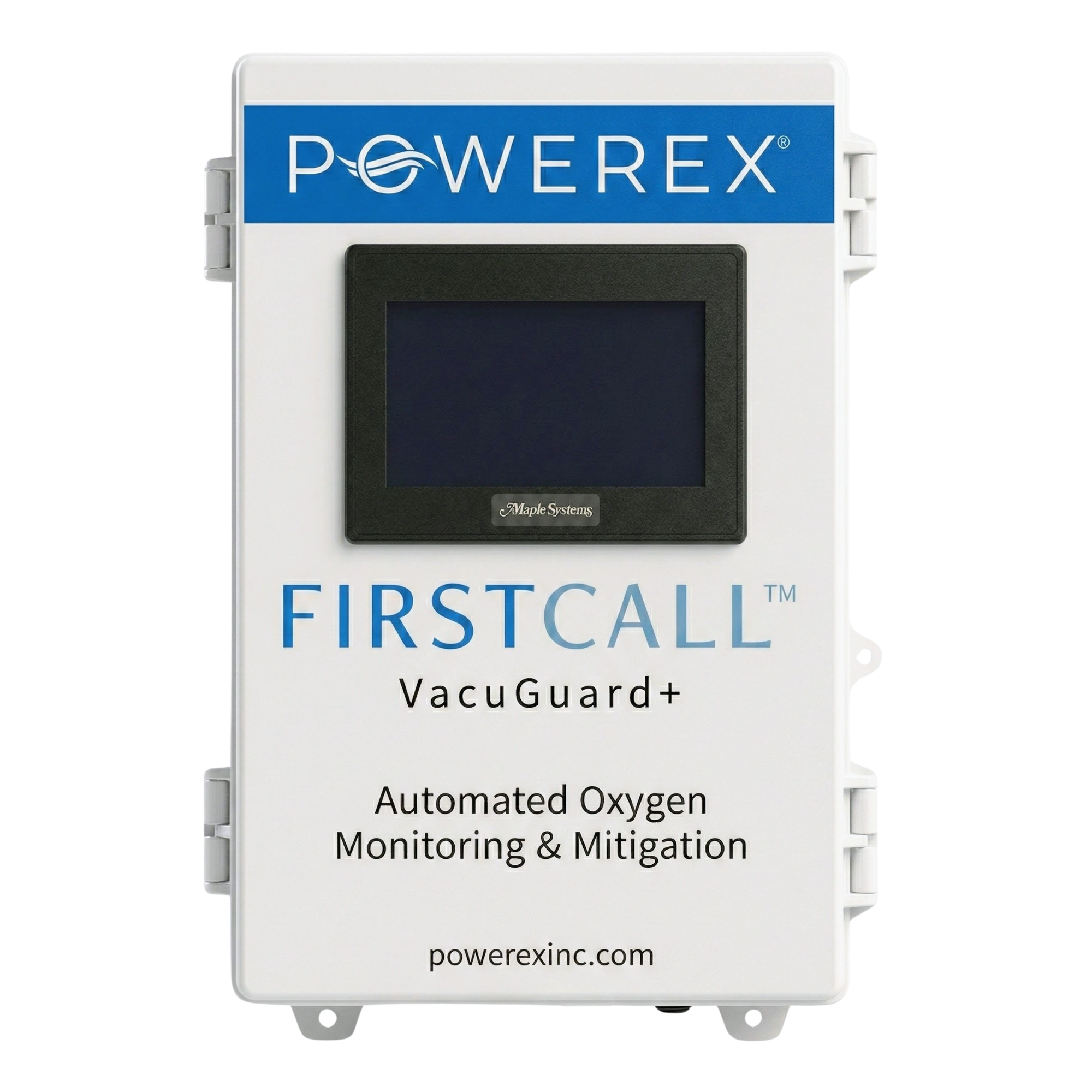

The VacuGuard+ is a factory-integrated automated system designed to maintain medical vacuum oxygen levels below the NFPA 99 mandated 23.6% threshold. Using a PLC, a 10-year zirconium-oxide sensor, and a solenoid valve, the unit monitors and dilutes excess O₂ automatically without manual intervention. Mitigation cycles are carefully managed to always prioritize facility vacuum pressure, ensuring patient-side performance is never compromised. To simplify compliance, the system logs data every ten seconds to provide a high-resolution time history for annual reporting. Finally, an integrated dry-contact relay provides immediate notification to master alarm panels if oxygen concentrations reach the alarm limit.

Product Specs
Installation Documents
Features

Part Number		VacuGuard+
Description		Monitors & mitigates oxidizers, vacuum pressure monitoring, alarm relay output & data logging
Performance	Response Time	< 1 second of any change in oxidizer levels
	Accuracy	± 0.5% of FS
	Repeatability	± 1% of reading
	Operating Temp	-40° to 122°F (-40° to +50°C)
	Humidity	0 – 98% RH, non-condensing
	Data Logging	Oxidizer and Vacuum Pressure readings logged every 10 seconds
	Alarm Output	2-wire dry contact, normally closed (open on alarm of 23.6% O2)
Oxidizer Monitoring	Sensor Type	Non-depleting Zirconium Oxide with 10+ year life
	Maintenance	No re-calibration required for the life of the sensor
	Range	0 – 95% oxidizer concentration
	Sensor Connection	1” NPT male adapter with KF25 quick disconnect (10 ft cord to control unit)
Vacuum Pressure Monitoring	Range	0 – 30 in Hg, vacuum range
	Sensor Connection	¼” NPT male threaded connection
	Sensor Connection	(10 ft cord to control unit)
Gas Mitigation	Gas Type	Inert gas (typically nitrogen) or ambient air
Gas Mitigation	Gas Pressure	5 – 10 psig (operating pressure range at valve inlet port
Gas Connection		½” NPT female threaded connection
Valve Power		Power supplied by control unit (10 ft cord to control unit)
Electrical	Voltage Source	110-120 VAC, 60 Hz
Electrical	Power (max)	19 Watts
Physical (Control Unit)	Dimensions	10” (W) x 8” (H) x 6” (D)
Physical (Control Unit)	Weight	6 pounds (2.7 kg)
Enclosure Type		General purpose (NEMA 2); not intended for explosive atmospheres

Manual

FEATURES:

Continuous Compliance Monitoring — Real-time O₂ tracking and data logging
Long-Life Sensor — Zirconium oxide sensor with a 10-year lifespan.
Automated Mitigation — PLC instantly adjusts levels without manual intervention.
Integrated Alarm — Dry contact relay triggers above 23.6% for master alarm panels.
