Home Medical Medical Gas Pipeline NEW FirstCall™ Manifolds

The Powerex FirstCall™ fully-automatic medical gas manifolds deliver an uninterrupted supply of medical gas to a facility. The manifold is cleaned, tested, and prepared for the intended medical gas service. It is constructed in accordance with requirements of the latest edition of NFPA 99 and CGA.

  • Industry-leading flow capacity
  • 7” high-resolution touchscreen HMI graphically displays bank pressure, primary/secondary bank status, final line pressure, changeover set point, and alarm status
  • System logic controlled by next generation PLC technology
  • Ethernet connectivity using BACnet over IP protocol to building management system – available
  • Designed and manufactured in the USA
  • 5 year warranty on parts, 2 year warranty on labor
  • Medical Gas Manifolds
  • Lab Gas Manifolds
  • Headers
  • Features
ModelDescriptionSpec SheetManualBrochureRevit

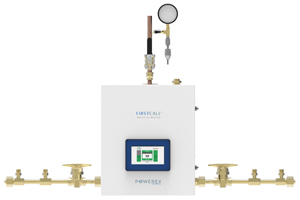

Cylinder x Cylinder
MFLD-CYL-NFPA-GGCylinder x Cylinder Manifold
Fully Automatic Digital

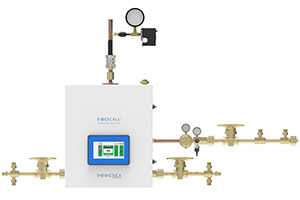

Liquid x Liquid
MFLD-LIQ-NFPA-GG-PSILiquid x Liquid Manifold
Fully Automatic Digital




ModelDescriptionSpec SheetManual
Lab Liquid Manifold
MFLD-LIQ-GG-PSILaboratory Liquid Manifold
Fully Automatic Digital


ModelDescriptionSpec Sheet
Cylinder x Cylinder Headers
HDR-STGD-GG-NXN-36CStaggered Headers with Copper Pigtails
for Cylinder x Cylinder Manifolds

HDR-STGD-GG-NXN-36SStaggered Headers with Stainless Steel Flexible Pigtails
for Cylinder x Cylinder Manifolds

HDR-VERT-GG-NXN-36CVertical Headers with Copper Pigtails
for Cylinder x Cylinder Manifolds

HDR-VERT-GG-NXN-36SVertical Headers with Stainless Steel Flexible Pigtails
for Cylinder x Cylinder Manifolds

Liquid x Liquid Headers
HDR-LIQ-GG-NXN-72Staggered Headers with Stainless Steel Flexible Pigtails
for Liquid x Liquid Manifolds

Emergency Reserve Headers for Liquid Manifolds
HDR-ERESV-STGD-GG-N-36CEmergency Reserve Staggered Headers with Copper Pigtails
for Liquid x Liquid Manifolds

HDR-ERESV-STGD-GG-N-36SEmergency Reserve Staggered Headers with Stainless Steel Flexible Pigtails
for Liquid x Liquid Manifolds

HDR-ERESV-VERT-GG-N-36CEmergency Reserve Vertical Headers with Copper Pigtails
for Liquid x Liquid Manifolds

HDR-ERESV-VERT-GG-N-36SEmergency Reserve Vertical Headers with Stainless Steel Flexible Pigtails
for Liquid x Liquid Manifolds

  • Built by Powerex in Harrison, OH
  • 5 year warranty on parts, 2 year warranty on labor
  • Industry-leading flow capacity
  • 7” high-resolution touchscreen HMI graphically displays bank pressure, primary/secondary bank status, final line pressure, changeover set point, and alarm status
  • System logic controlled by next generation PLC technology
  • Ethernet connectivity using BACnet over IP protocol to building management system – available
  • Final line pressure transducer eliminates the need for an additional high/low pressure switch
  • Robust changeover design using dome-loaded primary regulators controlled by dual solenoids
  • Robust piston-style final line regulator
  • Removable cabinet enclosure for improved service access
  • Single point vent connection
  • Maintenance mode
  • Push-button bank changeover
  • ¾” source valve included
  • Easy mounting bracket system
  • NEMA 4 enclosure optional
  • Heaters optional for Nitrous Oxide and Carbon Dioxide
  • Input power 110 VAC to 240 VAC, 50 to 60 Hz
