Medical Scroll Enclosure Systems

  • Medical Scroll Enclosure Systems
  • Medical Scroll Open Systems
  • Medical Reciprocating Piston Systems
  • Instrument Air
  • Medical Rotary Screw Enclosure Systems
Home Medical Medical Air Medical Scroll Enclosure Systems

Our trademarked oil-free enclosure systems offer the lowest noise levels in the industry. Each system is packaged in a rigid steel frame with powder coated panels and lined with sound-deadening insulation. The low noise levels are unmatched in the industry and allow installation at the point of use, while the small footprint simultaneously maximizes floor space.

Benefit & Features

  • Oil-less scroll pump technology
  • Low maintenance
  • Fully compliant with NFPA 99
  • Manufactured in ISO 9001:2008 certified facilities
  • Product Specs
  • Installation Documents
  • Engineering Resources
  • OSHPD Systems
  • Features
ModelSystem HPPump HPSCFM @ 50 PSIGTank (gal)dB(A) LevelFLA @ 208VFLA @ 230VFLA @ 460VSpec SheetBrochure
Duplex Systems
MSED100310 (2)533.2805359.654.028.0

MSED15B415 (2)7.547.612062-36.619.3
MSED150415 (2)549.81205688.480.040.9
MSED20B420 (2)1063.212063-48.025.0
MSED200420 (2)566.412058117.2106.053.9
MSED225422.5 (2)7.571.412064-53.927.9
MSED30B530 (2)1094.820065-71.036.5
MSED300630 (2)599.624059174.8158.079.9
MSED400640 (2)5132.824060232.4210.0105.8
MSED50B650 (2)10158.024066-117.059.5
Triplex Systems
MSET100410 (3)566.41205688.480.040.9

MSET150515 (3)599.620059131.6119.060.4
MSET20B620 (3)10126.424065-48.025.0
MSET200620 (3)5132.824061174.8158.079.9
MSET225622.5 (3)7.5142.824066-48.025.0
MSET30B630 (3)10189.624067-71.036.5
MSET300630 (3)5199.224062261.2236.0118.8
MSET40B640 (3)10252.824067-94.048.0
MSET400640 (3)5265.624063347.6314.0157.8
MSET50B750 (3)10316.040068-117.059.5
MSET60B760 (3)10379.240072-140.071.0
Quadplex Systems
MSEQ150615 (4)5149.424061174.8158.079.9

MSEQ200620 (4)5199.224063232.4210.0105.8
MSEQ225622.5 (4)7.5214.224068-53.927.9
MSEQ30B630 (4)10284.424069-71.036.5
MSEQ300730 (4)5298.840064347.6314.0157.8
MSEQ40B740 (4)10379.240069-94.048.0
MSEQ400740 (4)5398.440065462.8418.0209.7
MSEQ45B845 (4)7.5428.466069-105.853.8
MSEQ50B850 (4)10474.066070-117.059.5
MSEQ60B860 (4)10568.866073-140.071.0
ModelManualElectrical DrawingsPneumatic Drawings
Duplex Systems
MSED1003Coming Soon
MSED15B4
Coming Soon
MSED1504Coming Soon
MSED20B4
Coming Soon
MSED2004Coming Soon
MSED2254
Coming Soon
MSED30B5
Coming Soon
MSED3006Coming Soon
MSED4006Coming Soon
MSED50B6
Coming Soon
Triplex Systems
MSET1004Coming Soon
MSET1505Coming Soon
MSET20B6
Coming Soon
MSET2006Coming Soon
MSET2256
Coming Soon
MSET30B6
Coming Soon
MSET3006Coming Soon
MSET40B6
Coming Soon
MSET4006Coming Soon
MSET50B7
Coming Soon
MSET60B7
Coming Soon
Quadplex Systems
MSEQ1506Coming Soon
MSEQ2006Coming Soon
MSEQ2256
Coming Soon
MSEQ30B6
Coming Soon
MSEQ3007Coming Soon
MSEQ40B7
Coming Soon
MSEQ4007Coming Soon
MSEQ45B8
Coming Soon
MSEQ50B8
Coming Soon
MSEQ60B8
Coming Soon

Downloadable CAD and Revit Drawings coming soon!

ModelCAD - 2DCAD - 3DRevit Drawings
Duplex Systems
MSED1003Coming SoonComing SoonComing Soon
MSED15B4Coming SoonComing SoonComing Soon
MSED1504Coming SoonComing SoonComing Soon
MSED20B4Coming SoonComing SoonComing Soon
MSED2004Coming SoonComing SoonComing Soon
MSED2254Coming SoonComing SoonComing Soon
MSED30B5Coming SoonComing SoonComing Soon
MSED3006Coming SoonComing SoonComing Soon
MSED4006Coming SoonComing SoonComing Soon
MSED50B6Coming SoonComing SoonComing Soon
Triplex Systems
MSET1004Coming SoonComing SoonComing Soon
MSET1505Coming SoonComing SoonComing Soon
MSET20B6Coming SoonComing SoonComing Soon
MSET2006Coming SoonComing SoonComing Soon
MSET2256Coming SoonComing SoonComing Soon
MSET30B6Coming SoonComing SoonComing Soon
MSET3006Coming SoonComing SoonComing Soon
MSET40B6Coming SoonComing SoonComing Soon
MSET4006Coming SoonComing SoonComing Soon
MSET50B7Coming SoonComing SoonComing Soon
MSET60B7Coming SoonComing SoonComing Soon
Quadplex Systems
MSEQ1506Coming SoonComing SoonComing Soon
MSEQ2006Coming SoonComing SoonComing Soon
MSEQ2256Coming SoonComing SoonComing Soon
MSEQ30B6Coming SoonComing SoonComing Soon
MSEQ3007Coming SoonComing SoonComing Soon
MSEQ40B7Coming SoonComing SoonComing Soon
MSEQ4007Coming SoonComing SoonComing Soon
MSEQ45B8Coming SoonComing SoonComing Soon
MSEQ50B8Coming SoonComing SoonComing Soon
MSEQ60B8Coming SoonComing SoonComing Soon
ModelSystem HPPump HPSCFM @ 50 PSIGTank (gal)dB(A) LevelFLA @ 208VFLA @ 230VFLA @ 460VSpec SheetBrochure
OSHPD Certified Duplex Systems
MSED100310 (2)533.2805359.654.028.0

MSED15B415 (2)7.547.612062-36.619.3
MSED150415 (2)549.81205688.480.040.9
MSED20B420 (2)1063.212063-48.025.0
MSED200420 (2)566.412058117.2106.053.9
MSED225422.5 (2)7.571.412064-53.927.9
MSED30B530 (2)1094.820065-71.036.5
MSED300630 (2)599.624059174.8158.079.9
MSED400640 (2)5132.824060232.4210.0105.8
MSED50B650 (2)10158.024066-117.059.5
OSHPD Certified Triplex Systems
MSET100410 (3)566.41205688.480.040.9

MSET150515 (3)599.620059131.6119.060.4
MSET20B620 (3)10126.424065-48.025.0
MSET200620 (3)5132.824061174.8158.079.9
MSET225622.5 (3)7.5142.824066-48.025.0
MSET30B630 (3)10189.624067-71.036.5
MSET300630 (3)5199.224062261.2236.0118.8
MSET40B640 (3)10252.824067-94.048.0
MSET400640 (3)5265.624063347.6314.0157.8
MSET50B750 (3)10316.040068-117.059.5
MSET60B760 (3)10379.240072-140.071.0
OSHPD Certified Quadplex Systems
MSEQ150615 (4)5149.424061174.8158.079.9

MSEQ200620 (4)5199.224063232.4210.0105.8
MSEQ225622.5 (4)7.5214.224068-53.927.9
MSEQ30B630 (4)10284.424069-71.036.5
MSEQ300730 (4)5298.840064347.6314.0157.8
MSEQ40B740 (4)10379.240069-94.048.0
MSEQ400740 (4)5398.440065462.8418.0209.7
MSEQ45B845 (4)7.5428.466069-105.853.8
MSEQ50B850 (4)10474.066070-117.059.5
MSEQ60B860 (4)10568.866073-140.071.0

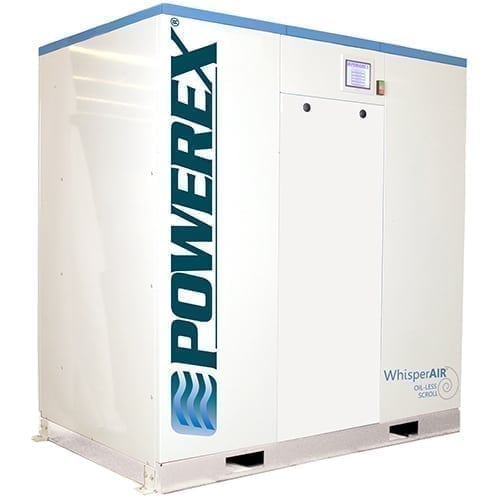

WhisperAIR™ Sound Enclosure Cabinet

Powerex’s trademarked oil-free enclosure systems offer the lowest noise levels in the industry. Each system is packaged in a rigid steel frame with powder coated panels and lined with sound-deadening insulation. The low noise levels are unmatched in the industry and allow installation at the point of use, while the small footprint simultaneously maximizes floor space.

Oil-less Scroll Pump Technology

Our innovative scroll technology is completely oil-less, extremely quiet, and energy efficient. The scroll pump has few moving parts, making it reliable and easier to maintain. The self lubricating tip seals and absence of a gearbox means the pump is truly 100% oil free. As the leaders in scroll pump technology, our latest design incorporates several innovative features:

  • Main bearings are housed in durable cast iron instead of aluminum which prevents fretting and premature failure of the bearing race. This pump can be operated at 100% duty with confidence.
  • The patented bearing re-grease feature has been improved to allow maintenance from the front side of the pump, cutting service time in half.
  • The patented tip seal design yields the highest flow rates and longevity of any other dry scroll compressor.
  • The improved efficiency and cooling results in lower operating temperatures.
  • Extremely low vibration.
  • Industry first 10hp scroll pump improves system efficiency by producing more output using fewer pumps.

Energy Efficiency

With the Powerex Variable Pump Drive system, each compressor pump is automatically staged on/off individually based on actual system demand, maximizing energy efficiency at all usage levels. Lead compressor status will alternate every time a pump is called for – or every 10 minutes, whichever comes first – which maintains equal run hours and extends maintenance intervals.
Redundancy is built into our system with our multiple pump design, eliminating the need to purchase an additional compressor.

System Features

3-5 HP SIMPLEX MODELS
  • 3-5 HP systems are UL/CSA certified
  • Integral 13 gallon tank ASME/CRN
  • Inlet filtration with replaceable element
  • Front mounted control panel includes:
    • On/Off switch
    • Power on light
    • High temperature shutdown with indication light
    • Run time hourmeter
    • Pressure gauge
    • Automatic start/stop operation
    • Control voltage starter with motor overload protection
  • Internal vibration isolators
  • Air-cooled aftercooler
  • ODP Motor
10-60 HP MULTIPLEX MODELS
  • 10-20 HP systems are UL/CSA certified
  • Inlet filtration with replaceable element
  • Front mounted control panel includes:
    • On/Off switch
    • Power on light
    • High temperature shutdown with indication on the display
    • Run time hourmeter for each pump
    • Maintenance counter with alarm warning display
    • System pressure display
    • Full voltage starter with overload protection
    • General compressor fault with remote contacts
  • Internal vibration isolators
  • Air-cooled aftercooler for each compressor
  • TEFC Motor
ACCESSORIES & OPTIONS
  • Air receivers 30-600 gal
  • Desiccant air treatment systems
  • Refrigerated air treatment systems
  • Remote inlet filters
  • Master lead/lag controllers for multiple cabinets
  • NFPA 99 compliant systems
  • Laboratory system packaging
  • CO monitor
  • Dewpoint monitor
  • 50Hz motors

POWEREX: The Leader in Pure Air Technology

Powerex products are made in the U.S.A. with U.S. and imported components.
